Optimizer Support

Optimizer Support#

LoongForge offers optimizer off-loading and low-precision optimizers to cut memory usage when training in reduced precision.

1. Enable Optimizer Off-load for Low-Precision Training#

Optimizer off-load is one of the most effective ways to relieve GPU-memory pressure caused by optimizer states. By migrating part or all of these states to CPU RAM we can train larger models or use larger batch sizes without changing the compute graph.

BF16 example

--bf16 \
--use-precision-aware-optimizer \
--optimizer-cpu-offload \
--optimizer-offload-fraction 1.0

FP8 example

--fp8-format e4m3 \
--fp8-recipe blockwise \
# --fp8-param-gather \
--use-precision-aware-optimizer \
--optimizer-cpu-offload \
--optimizer-offload-fraction 1.0

Flag meanings

  • --optimizer-cpu-offload – turn on CPU off-load

  • --optimizer-offload-fraction – fraction of states to off-load (1.0 = all, 0.0 = none)

Both flags require --use-precision-aware-optimizer.
When enabled, training bit-exactness is preserved.

2. Low-Precision Optimizer States#

Instead of keeping the optimizer in FP32, we can store exp_avg and exp_avg_sq in BF16/FP16/FP8, cutting memory and bandwidth while maintaining numerical stability.

--use-precision-aware-optimizer \
--exp-avg-dtype bf16 \
--exp-avg-sq-dtype bf16

Flags

  • --exp-avg-dtype – data type of Adam’s first moment

  • --exp-avg-sq-dtype – data type of Adam’s second moment

Again, --use-precision-aware-optimizer is mandatory.
Training remains bit-exact.

3. Performance Tuning for Optimizer Off-load#

We replace Megatron’s native Torch CPU-Adam with DeepSpeed’s highly-optimized CPU-Adam (enabled by default).

To disable and fall back:

--no-use-deepspeed-cpu-adam

For best throughput export:

export OMP_NUM_THREADS=8

4. Performance Tuning for Low-Precision Optimizers#

We ship an optimized version of TransformerEngine’s low-precision optimizer (BF16 only).

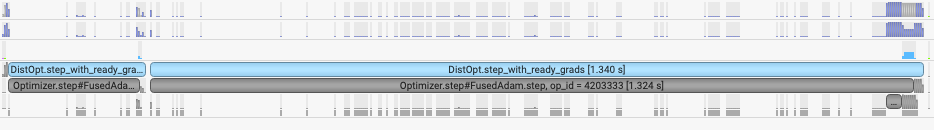

Original TE step time ≈ 1.34 s
origin_te Optimized step time ≈ 358 ms after_opt

The faster path is enabled automatically when a low-precision optimizer is used.
To force the original TE implementation:

export USE_BF16_BUFFER=false
