MoE All-to-All Overlap

MoE All-to-All Overlap#

LoongForge provides communication-oriented optimizations for MoE models. By adding the corresponding Megatron launch flags, the All-to-All traffic in Expert Parallel (EP) can be overlapped with computation, delivering the best training throughput.

1. 1F1B A2A Overlap#

During MoE training the EP-induced All-to-All is usually one of the dominant bottlenecks. Inspired by DSv3 DualPipe, this framework interleaves the forward / backward computation of different micro-batches with EP All-to-All on the time axis. The expensive EP communication is thus hidden behind compute, greatly reducing its impact on overall throughput.

Features#

  • Hide All-to-All with micro-batch overlap

  • Split weight-gradient and activation-gradient transfers for better PP overlap

  • FP8 training support

Usage#

Add the following launcher flags:

--overlap-moe-expert-parallel-comm \
--delay-wgrad-compute

Prerequisite: Interleave 1F1B schedule must be enabled.

For best overlap we recommend:

export CUDA_DEVICE_MAX_CONNECTIONS=32

(This may slightly hurt TP overlap; choose according to whether TP or EP dominates communication.)

2. Fine-Grained Activation Offload#

In long-context training the activation memory grows rapidly with sequence length and soon becomes the limiting factor. The common remedy is to combine Tensor Parallelism (TP) with full-layer recomputation to compress activation footprint.
However, the 1F1B A2A overlap strategy relies on module-wise interleaving of adjacent batches, making traditional full-layer recomputation incompatible.

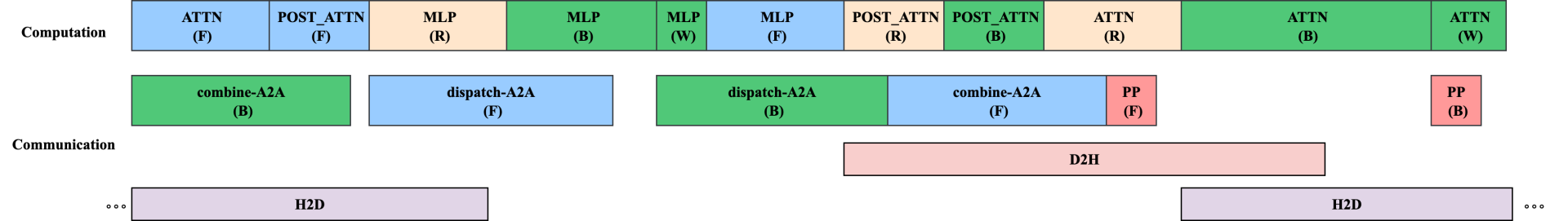

To solve this, the framework introduces module-level selective recomputation plus fine-grained activation offload, approximating the memory savings of full-layer recomputation while preserving the overlap schedule (see figure). offload_stream

Features#

  • Activation offload & reload hidden behind compute

  • Tensor-level offload granularity

  • FP8 training support

Usage#

Enable module-level selective recomputation:

--recompute-granularity selective \
--recompute-modules a2a_overlap_attn a2a_overlap_post_attn a2a_overlap_mlp

Enable tensor-level activation offload:

--fine-grained-activation-offloading \
--offload-tensors dispatched_input pre_mlp_layernorm_output

Additionally, bind each process to the NUMA node local to its GPU to improve D2H/H2D bandwidth:

--bindpcie
