Quick Start: DreamZero Training

Quick Start: DreamZero Training#

This guide describes how to quickly launch DreamZero training within the LoongForge framework, covering weight and data preparation, Full / LoRA training, resume training, and the optional Feature Cache. Both Wan2.2-TI2V-5B and Wan2.1-I2V-14B model specifications are supported. Commands are run by default from the LoongForge repo root; the example uses /workspace/LoongForge — replace it with your actual environment.

0. Resource Preparation#

0.1 Environment Variables#

cd /workspace/LoongForge
export LOONGFORGE_PATH=$(pwd)
export DREAMZERO_CKPT_ROOT=/workspace/dreamzero/checkpoints
export DREAMZERO_DATA_ROOT=/workspace/dreamzero/data
export DREAMZERO_CACHE_ROOT=/workspace/dreamzero/cache

export WAN21_CKPT_DIR=$DREAMZERO_CKPT_ROOT/Wan2.1-I2V-14B-480P
export WAN22_CKPT_DIR=$DREAMZERO_CKPT_ROOT/Wan2.2-TI2V-5B
export DREAMZERO_AGIBOT_CKPT_DIR=$DREAMZERO_CKPT_ROOT/DreamZero-AgiBot

mkdir -p "$DREAMZERO_CKPT_ROOT" "$DREAMZERO_DATA_ROOT" "$DREAMZERO_CACHE_ROOT"

Environment Variable

Description

LOONGFORGE_PATH

LoongForge repo root, used to locate training scripts and configs from any directory

DREAMZERO_CKPT_ROOT

Unified directory for all DreamZero-related weights

DREAMZERO_DATA_ROOT

Unified directory for all training datasets

DREAMZERO_CACHE_ROOT

Unified output directory for the offline Feature Cache; has no effect on online training when the cache is not used

WAN21_CKPT_DIR

Wan2.1-I2V-14B weight directory; also provides the CLIP image encoder for 5B training

WAN22_CKPT_DIR

Wan2.2-TI2V-5B weight directory

DREAMZERO_AGIBOT_CKPT_DIR

Initialization weights directory for AgiBot / YAM LoRA training; not required for DROID or LIBERO

All paths above can be adjusted to your actual storage layout. The training scripts read the corresponding variables and do not require the exact directory structure shown in the example.

0.2 Download Weights#

Scenario

Required Weights

Wan2.2 5B DROID / LIBERO

Full Wan2.2 5B; CLIP image encoder from Wan2.1

Wan2.1 14B DROID

Full Wan2.1 14B

Wan2.1 14B AgiBot / YAM LoRA

Full Wan2.1 14B; DreamZero-AgiBot initialization weights


python -m pip install -U "huggingface_hub[cli]"

# Wan backbone
hf download Wan-AI/Wan2.1-I2V-14B-480P --local-dir "$WAN21_CKPT_DIR"
hf download Wan-AI/Wan2.2-TI2V-5B --local-dir "$WAN22_CKPT_DIR"

# When training only 5B, Wan2.1 only needs to add CLIP (Wan2.2 repo doesn't include CLIP; 5B still uses it to encode the first frame)
hf download Wan-AI/Wan2.1-I2V-14B-480P \
    models_clip_open-clip-xlm-roberta-large-vit-huge-14.pth \
    --local-dir "$WAN21_CKPT_DIR"

# AgiBot / YAM LoRA initialization weights (not required for DROID, LIBERO)
hf download GEAR-Dreams/DreamZero-AgiBot \
    --repo-type model --local-dir "$DREAMZERO_AGIBOT_CKPT_DIR"

The tokenizer uses by default $WAN22_CKPT_DIR/google/umt5-xxl (5B) / $WAN21_CKPT_DIR/google/umt5-xxl (14B) bundled with the Wan repo, so no separate download needed. If a separate shared directory is needed:

export TOKENIZER_PATH=$DREAMZERO_CKPT_ROOT/umt5-xxl
hf download google/umt5-xxl \
    special_tokens_map.json spiece.model tokenizer.json tokenizer_config.json \
    --local-dir "$TOKENIZER_PATH"

0.3 Weight Integrity Check#

test -f "$WAN22_CKPT_DIR/diffusion_pytorch_model.safetensors.index.json"
test -f "$WAN22_CKPT_DIR/models_t5_umt5-xxl-enc-bf16.pth"
test -f "$WAN22_CKPT_DIR/Wan2.2_VAE.pth"
test -f "$WAN21_CKPT_DIR/models_clip_open-clip-xlm-roberta-large-vit-huge-14.pth"
test -f "$WAN22_CKPT_DIR/google/umt5-xxl/spiece.model"

# Additional checks when training 14B:
test -f "$WAN21_CKPT_DIR/diffusion_pytorch_model.safetensors.index.json"
test -f "$WAN21_CKPT_DIR/models_t5_umt5-xxl-enc-bf16.pth"
test -f "$WAN21_CKPT_DIR/Wan2.1_VAE.pth"
echo "DreamZero weight check passed"

0.4 Download Datasets#

# DROID (approx 131GB, already converted to LeRobot v2)
export DROID_DATA_ROOT=$DREAMZERO_DATA_ROOT/droid_lerobot
hf download GEAR-Dreams/DreamZero-DROID-Data \
    --repo-type dataset --local-dir "$DROID_DATA_ROOT"

# LIBERO (for simulation training)
export LIBERO_DATA_ROOT=$DREAMZERO_DATA_ROOT/libero_lerobot
hf download physical-intelligence/libero \
    --repo-type dataset --local-dir "$LIBERO_DATA_ROOT"

For AgiBot / YAM, there is currently no directly usable LeRobot v2 training data; the data must be converted per the field spec below.

1. Data Configuration#

1.1 Input Format#

dataset_root/
├── data/**/episode_*.parquet
├── videos/                         # required when info.json uses video dtype
└── meta/
    ├── info.json                   # codebase_version must start with v2
    ├── tasks.jsonl
    └── episodes.jsonl

EMBODIMENT_TAG

State / Action

Video Fields

Language or Task Fields

oxe_droid

observation.state ≥14 dims; action ≥21 dims

exterior_image_1_left, exterior_image_2_left, wrist_image_left

Three annotation.language.* fields

libero_sim

state 8 dims; actions 7 dims

image, wrist_image

task_index

agibot

observation.state ≥20 dims; action ≥22 dims

top_head, hand_left, hand_right

task_index

yam

packed observation.state / action ≥46 dims

top/left/right three *-camera-images-rgb fields

task_index

Refer to PRESETS in tools/data_preprocess/embodied/dreamzero/prepare_dataset.py for the full field spec.

1.2 Generate DreamZero Metadata#

EMBODIMENT_TAG=oxe_droid DATA_PATH="$DROID_DATA_ROOT" \
    bash examples/embodied/dreamzero/prepare_dreamzero_dataset.sh

EMBODIMENT_TAG=libero_sim DATA_PATH="$LIBERO_DATA_ROOT" \
    bash examples/embodied/dreamzero/prepare_dreamzero_dataset.sh

EMBODIMENT_TAG=agibot DATA_PATH=/path/to/agibot_lerobot \
    bash examples/embodied/dreamzero/prepare_dreamzero_dataset.sh

EMBODIMENT_TAG=yam DATA_PATH=/path/to/yam_lerobot \
    bash examples/embodied/dreamzero/prepare_dreamzero_dataset.sh

Common Options:

  • FORCE=1: Overwrite existing metadata

  • SKIP_STATISTICS=1: Generate schema only, skip statistics; statistics must be filled in before full training

On success, prints DreamZero dataset preparation complete.

2. Launch Training#

2.1 Full / LoRA Training#

cd "$LOONGFORGE_PATH"
export DATA_PATH=$DROID_DATA_ROOT
export WANDB_MODE=disabled

# 5B Full, default 200000 steps
bash examples/embodied/dreamzero/run_dreamzero_wan22_5b_full_finetune.sh

# 5B LoRA
TRAIN_ITERS=10000 SAVE_INTERVAL=1000 \
    bash examples/embodied/dreamzero/run_dreamzero_wan22_5b_lora_finetune.sh

# 14B Full
bash examples/embodied/dreamzero/run_dreamzero_wan21_14b_full_finetune.sh

# 14B LoRA, DROID
TRAIN_ITERS=10000 SAVE_INTERVAL=1000 \
    bash examples/embodied/dreamzero/run_dreamzero_wan21_14b_lora_finetune.sh

# LIBERO 5B Full
MODEL_NAME=dreamzero_libero_wan22_5b DATA_PATH="$LIBERO_DATA_ROOT" \
    bash examples/embodied/dreamzero/run_dreamzero_wan22_5b_full_finetune.sh

# AgiBot / YAM 14B LoRA (initialized from DreamZero-AgiBot)
MODEL_NAME=dreamzero_agibot_wan21_14b DATA_PATH=/path/to/agibot_lerobot \
    bash examples/embodied/dreamzero/run_dreamzero_wan21_14b_lora_finetune.sh

MODEL_NAME=dreamzero_yam_wan21_14b DATA_PATH=/path/to/yam_lerobot \
    bash examples/embodied/dreamzero/run_dreamzero_wan21_14b_lora_finetune.sh

For the DROID scenario, MODEL_NAME does not need to be set; the training script automatically picks the correct config. Only when switching to LIBERO, AgiBot, or YAM do you need to override it as shown.

Defaults:

Scenario

Distributed Strategy

Per-GPU batch

Default global batch

Default LR

5B Full

8-GPU DDP + ZeRO-1

1

8

1e-5

5B LoRA

8-GPU FSDP

1

8

1e-5

14B Full

8-GPU FSDP

1

8

1e-5

14B DROID LoRA

8-GPU FSDP

1

8

1e-4

14B AgiBot / YAM LoRA

8-GPU FSDP

1

8

1e-5

Batch sizes can be adjusted via PER_DEVICE_BATCH_SIZE and GLOBAL_BATCH_SIZE, but must satisfy GLOBAL_BATCH_SIZE % (GPUS_PER_NODE * NNODES * PER_DEVICE_BATCH_SIZE) == 0. When fewer than 8 GPUs are available, set GPUS_PER_NODE; the default global batch size will scale accordingly.

2.2 Resume Training#

TRAIN_ITERS=20000 SAVE_INTERVAL=1000 \
OUTPUT_DIR=/workspace/outputs/dreamzero/droid_wan22_5b_lora \
    bash examples/embodied/dreamzero/run_dreamzero_wan22_5b_lora_finetune.sh \
    --resume

--resume will load the latest checkpoint from $OUTPUT_DIR/checkpoints. When resuming, keep the same world size and batch config as when saved; the run aborts if no checkpoint is found.

2.3 Offline Feature Cache (Optional)#

# Generate full cache (5B defaults to video_latents + prompt_embs; 14B default does not include prompt_embs)
MODEL_NAME=dreamzero_full_wan22_5b DATA_PATH="$DROID_DATA_ROOT" \
CACHE_OUTPUT_DIR=$DREAMZERO_CACHE_ROOT/dreamzero_full_wan22_5b \
GPUS_PER_NODE=8 SAMPLE_TRANSFORM_SEED=0 VALIDATION_REQUIRE_FULL_COVERAGE=1 \
    bash examples/embodied/dreamzero/precompute_dreamzero_cache.sh

# Train with cache (must match SAMPLE_TRANSFORM_SEED, resolution, and language chunk config used at generation time)
CACHE_DIR=$DREAMZERO_CACHE_ROOT/dreamzero_full_wan22_5b SAMPLE_TRANSFORM_SEED=0 \
    bash examples/embodied/dreamzero/run_dreamzero_wan22_5b_full_finetune.sh

The training script strictly validates the cache at startup. When manifest, _SUCCESS, or transform config mismatch, training aborts before the first step.

2.4 Performance Optimization Switches#

The DROID 5B / 14B configs enable validated default optimizations. LIBERO, AgiBot, and YAM use conservative defaults. After adjusting performance switches, we recommend running 3–10 steps first and checking loss, grad norm, and memory usage.

Control group (disable all kernel optimizations, for isolating loss / performance issues):

# Wan2.2 5B
bash examples/embodied/dreamzero/run_dreamzero_wan22_5b_full_finetune.sh \
    model.flash_attention_dense=false model.avoid_rope_reconcat=false \
    model.batch_vae_encode=false 'model.prompt_emb_cache=""'

# Wan2.1 14B
bash examples/embodied/dreamzero/run_dreamzero_wan21_14b_full_finetune.sh \
    model.skip_single_state_attention=false model.compile_causal_cross_attention=false \
    model.compile_cross_attention_emulate_precision_casts=false model.compile_block_norm_modulate=false \
    model.qk_rmsnorm_impl=wan model.manual_self_attn_linear_backward=false model.fused_rope=false \
    'model.prompt_emb_cache=""' model.cache_fa_lens=false model.cache_fa_lens_clone=false

An empty string must be quoted as 'model.prompt_emb_cache=""'.

Main switches:

Switch

Default

Description

model.flash_attention_dense

true

dense attention uses FlashAttention directly

model.avoid_rope_reconcat

true

reuse segmented RoPE results, reduce temporary tensors

model.batch_vae_encode

true

batched VAE encoding; higher throughput but larger peak memory; disable when OOM

model.prompt_emb_cache

gpu

cache frozen Text Encoder outputs; set to cpu or empty string to disable

model.compile_causal_cross_attention (14B)

true

torch.compile compile causal cross-attention

model.fused_rope (14B)

true

fused RoPE kernel

model.cache_fa_lens (14B)

true

cache FlashAttention cumulative sequence lengths

2.5 Correctness Verification#

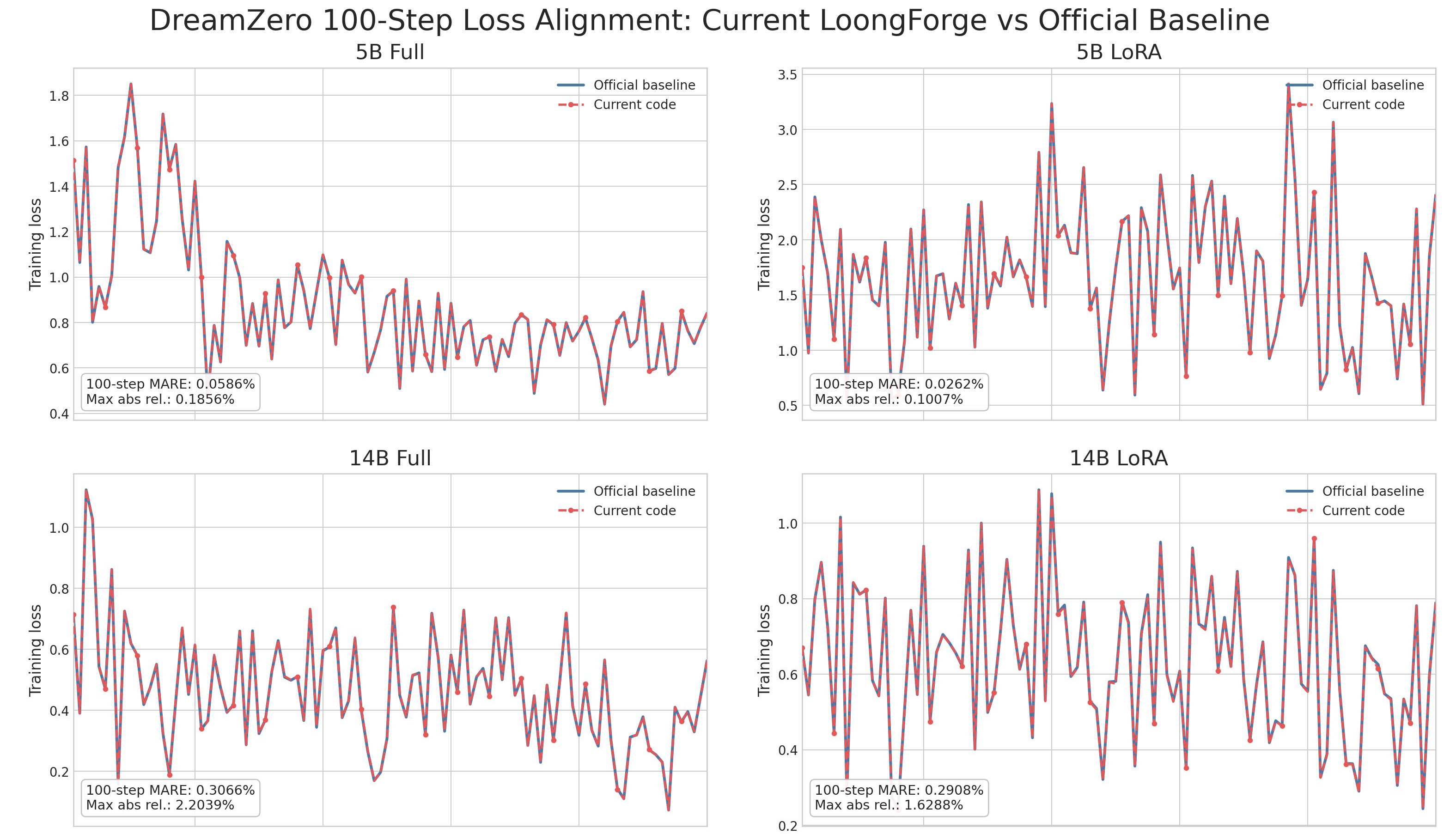

To ensure training accuracy is not affected by optimizations, we performed a step-by-step loss comparison between LoongForge’s DreamZero adaptation and the official implementation under the same data, weights, and training configuration. Results show that LoongForge’s performance optimizations produce no loss in training accuracy:

DreamZero training pipeline overview
